heightec Quadra Multi Function Rescue Device
heightec Quadra Multi Function Rescue Device
The Quadra rope device is used in rescue systems and has 4 different functions – life-lining, lowering, hauling and descending.
Fast Delivery
Deliveries
Coronavirus latest: We are still open for business! Please click here for our full statement on our operations.
We pride ourselves on our excellent service and aim to despatch all orders promptly. If you order before 3pm Monday to Friday we will try to send it out that day, for next working day delivery. Orders:
- placed after 3pm Monday to Thursday will be processed the next day
- placed after 3pm on a Friday or at a weekend or on a Bank Holiday will be processed on the next working day
- Orders to the Highlands, Islands and Out of Area may be a two-day delivery and overseas will be longer
Please call us for time-critical orders, so we can process the order as a matter of urgency and confirm the delivery schedule.
All goods are subject to availability. If we can't supply your goods within 30 days from the date of order, we will inform you immediately and let you know the expected delivery date.
Courier service
If you opt for a courier delivery, you will receive an email or text on the day we despatch your order, informing you that it is enroute. On the morning of delivery, at around 07:30, you will receive a further email or text giving you a 1-hour delivery time slot. Please therefore ensure that you have given us the correct mobile number and email address.
Couriers are extremely busy during Christmas and the sales, so please allow extra time.
We will not be held liable for any consequential loss caused by late or failed deliveries.
Timed deliveries / Saturday & Sunday deliveries
We can arrange timed deliveries for:
Weekdays:
- pre-10:30am
- pre-12 (midday)
Weekends:
- Saturday pre-10:30am
- Saturday pre-12 (midday)
- Sunday (anytime)
Some of the timed delivery options are available via the website, for others including a Sunday delivery, please call the office for a confirmed price and to arrange the alternate delivery.
Important Note:
Timed deliveries are subject to stock availability (we will contact you if any of your order is not in stock, so you can confirm if you would like us to split the delivery) and must be placed by 3pm Monday to Friday. Please call us if it's after 3pm as we may still be able to catch our couriers.
Description

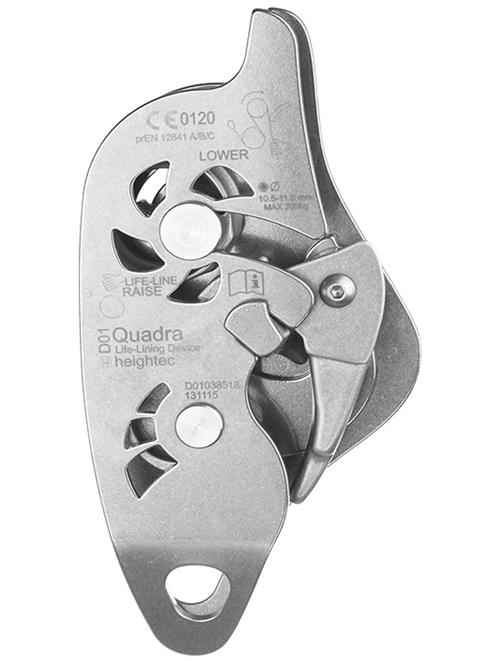

heightec Quadra Multi Function Rescue Device
Quadra is rated at 200 kg making it suitable for most rescue applications. It also has capacity to arrest a 250 kg load at fall factor 1/3 without damage to rope and retaining full function. All load bearing components are stainless steel for corrosion resistance and reduced spark hazard.
Quadra rescue life-lining and back-up device has four different functions:
- Life-lining – controlling a safety line attached to a rescuer
- Lowering – remotely controlling a load
- Hauling – self-locking load raising
- Descending – self lowering of operator
Operator is able to change from one function to another instantly, while rope is loaded and without adding additional components.
Key Features
- Patented double-braking mechanism increases friction under heavy loading and reduces rate at which friction is released
- Folding handle design prevents accidental operation due to interference or poor rigging
- Inspection and cleaning is simple as all component parts of device are visible and accessible
- Multi-function, can change between functions under load
- Updated versions have improved threading and durability without changing performance or method operation
Specifications
- Sizing: For 10.5mm - 11mm rope
- Material: Aluminium and stainless steel
- EN Mass Test: 200kg
- Loading: 200 kg SWL
- Weight: 0.723 kg
- Conformity: prEN 12841(A,B,C) - For UK Use Only
Manufacturer's Downloads
Specification
Backup Device
|
With/without Absorber
|
Without Lanyard
|
|---|---|
|
Rope or Wire Usage
|
Rope - Rope Access
|
|
with or without energy absorber
|
Without Energy Absorber
|
|
Rope Compatibility
|
10.5mm -11mm
|
|
Maximum Dynamic Load
|
200kg
|
|
Maximum Static Load
|
250kg
|
General
|
Industrial or Sport Use
|
Industrial
|
|---|---|
|
Material
|
Aluminium, Stainless Steel,
|
|
Colour
|
Silver
|
|
Conformity
|
CE EN12841 Type A
CE EN12841 Type B
CE EN12841 Type C
|
|
Weight (kg)
|
0.723kg
|
