Skylotec Milan 2.0 Hub CRD Auto-descent Rescue Device
Skylotec Milan 2.0 Hub
The Skylotec Milan 2.0 Hub is one of the world's most popular auto controlled rate rescue devices, which enables two people to be evacuated simultaneously from a structure, be that a wind turbine, tower crane, telecomms mast etc.
Fast Delivery
Deliveries
Coronavirus latest: We are still open for business! Please click here for our full statement on our operations.
We pride ourselves on our excellent service and aim to despatch all orders promptly. If you order before 3pm Monday to Friday we will try to send it out that day, for next working day delivery. Orders:
- placed after 3pm Monday to Thursday will be processed the next day
- placed after 3pm on a Friday or at a weekend or on a Bank Holiday will be processed on the next working day
- Orders to the Highlands, Islands and Out of Area may be a two-day delivery and overseas will be longer
Please call us for time-critical orders, so we can process the order as a matter of urgency and confirm the delivery schedule.
All goods are subject to availability. If we can't supply your goods within 30 days from the date of order, we will inform you immediately and let you know the expected delivery date.
Courier service
If you opt for a courier delivery, you will receive an email or text on the day we despatch your order, informing you that it is enroute. On the morning of delivery, at around 07:30, you will receive a further email or text giving you a 1-hour delivery time slot. Please therefore ensure that you have given us the correct mobile number and email address.
Couriers are extremely busy during Christmas and the sales, so please allow extra time.
We will not be held liable for any consequential loss caused by late or failed deliveries.
Timed deliveries / Saturday & Sunday deliveries
We can arrange timed deliveries for:
Weekdays:
- pre-10:30am
- pre-12 (midday)
Weekends:
- Saturday pre-10:30am
- Saturday pre-12 (midday)
- Sunday (anytime)
Some of the timed delivery options are available via the website, for others including a Sunday delivery, please call the office for a confirmed price and to arrange the alternate delivery.
Important Note:
Timed deliveries are subject to stock availability (we will contact you if any of your order is not in stock, so you can confirm if you would like us to split the delivery) and must be placed by 3pm Monday to Friday. Please call us if it's after 3pm as we may still be able to catch our couriers.
Description

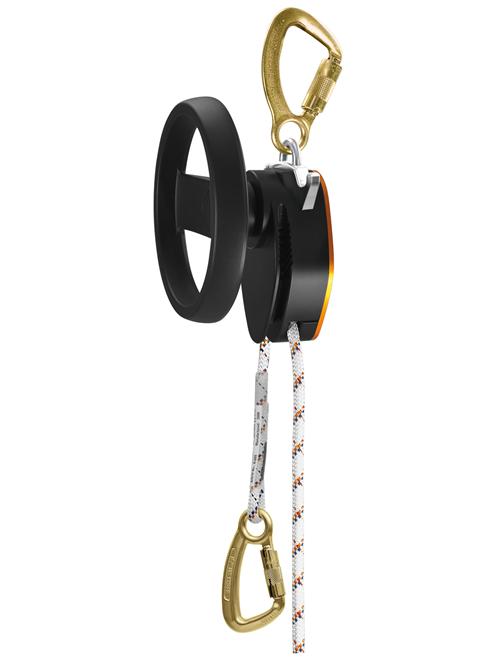

Skylotec Milan 2.0 Hub
The Skylotec Milan 2.0 Hub is one of the world's most popular auto controlled rate descending devices, which enables two people to be evacuated simultaneously and speedily from a structure, be that a wind turbine, tower crane, telecomms mast etc. using a centrifugally controlled reinforced brake which keeps the speed constant during the entire descent.
This 'Hub' (with wheel) version also enables an accident victim to be lifted a short distance (for instance if the rescuer needs to detach the casualty from the structure i.e. if they have fallen onto their lanyard/s), the victim can then be safely lowered to the ground.
The rope has connectors at both ends to enable it to be used in a yo-yo fashion, so that as soon as the first evacuees are on the ground, further evacuees can attach themselves and escape without having to recharge the device / pull rope through (if the rope length is the same height as the height of the structure. If it is not then a temporary attachment point can be tied into the rope when the first evacuees have safely landed on the ground).
Using Super Static 9mm rope, the Milan 2.0 rescue kit is small compared to rescue devices which use ropes of 10.5mm in diameter. The housing is constructed of milled aircraft grade aluminium making it very robust.
The Skylotec Milan 2.0 has a tweaked design from the original and now features 'bull horns' rather than the 'pig-tail' and an integrated rope clamp in the body rather than the protruding cam cleat.
Options:
- The devices can be supplied with rope made exactly to your specific height requirement (some of the more popular lengths are shown in the dropdown below - Please contact us if you require a different length to any of those shown).
- Available sealed in a 'Sealpac' to ease the burden of inspection (the Sealpac is an airtight bag within a heavy duty backpack or metal tin which allows the user to self-inspect the device yearly by checking a moisture meter to ensure there has been no ingress of moisture - the outer bag / tin can then be re-sealed and a new inspection sticker applied)
- Also available without the Hub (Milan 2.0 A-027) for any environment where a casualty / evacuee would not require lifting, or without the Power attachment (Milan Hub 2.0 A-028).
Please Note: that controlled rate descender (CRD) rescue devices and accessories are made to order and thus classified special order, non-returnable except for manufacturing fault. Lead-times vary, please contact us if your order is time critical.
Manufacturer's Downloads
Specification
Controlled Rate Descender
|
Abseiling Height upto
|
500m
|
|---|---|
|
Device Functions
|
Controlled Rate Descents
|
|
Maximum Number of Persons
|
2
|
|
Abseiling Speed m/s
|
0.9m/s
|
|
Operating Temperature from
|
-35°C
|
|
Operating Temperature to
|
60°C
|
|
Maximum Working Load (kg)
|
260kg
|
|
Rescue Kits
|
Constant Rate Descenders
Milan Rescue Kit
|
|
Milan Type
|
A-028 Milan 2.0 Hub CRD
|
|
Wind Farm Kit
|
Rescue Equipment
|
General
|
Industrial or Sport Use
|
Industrial
|
|---|---|
|
Conformity
|
ANSI Z359
CE EN341 Class A
CE EN1496
|
|
Weight (kg)
|
4.79kg
|
