SAR Evac Body Splint Confined Space Evacuation Stretcher

Code: …
From £575.10
(inc. VAT)
Learn more?

Camo and Black are Special Order Items!
Extended lead-times may apply for these options. Please call for urgent orders.

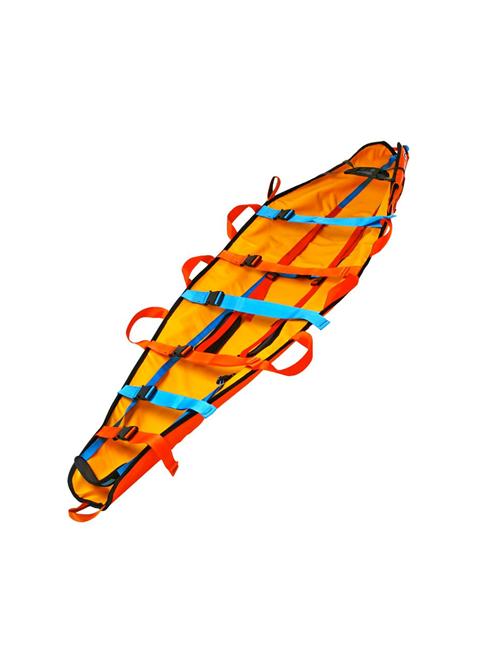

SAR Evac Body Splint Stretcher

Designed by one of the leading technical rescue specialists in UK, the Evac Body Splint Stretcher is a wrap-around stretcher used for the evacuation of a casualty from confined spaces or from height in a vertical, horizontal or angular mode of lift.

Full description

Description

SAR Evac Body Splint Stretcher

Camo and Black are Special Order Items!
Extended lead-times may apply for these options. Please call for urgent orders.

The SAR Evac Body Splint Stretcher has an integral body harness made from 25mm web with crutch padding and adjustable foot support with padding for extra security and to stop body slip. It can also be used as a lifting mat without the use of the straps (two people can transfer a casualty from one flat area to another keeping the casualty in a horizontal mode)

Key Features

  • Six horizontal lifting loops (three down each side positioned along the main trunk / torso of the casualty).
  • The two main vertical lifting loops are positioned at the shoulder ensuring a true vertical lifting position for the casualty.
  • Head strap has two fitting systems to provide firm head restraint.
  • The head section can be formed into a cone to disperse debris when dragging through confined spaces (The strap holding the stretcher in its rolled position has a fitted pad and can be used for head restraint by threading it around the outer loops on the coned area).
  • All the main casualty securing cross straps are made of 50mm webbing with adjustable two piece clip buckles.
  • Extra thick lower outer skin to make it more abrasion resistant.
  • Lightweight upper skin material to keep the overall stretcher weight down.
  • The lower outer material is orange and made from flame retardent, heavy duty PVC reinforced nylon. The Inner and bag are made from standard PVC reinforced nylon.

Please note that the lifting bridle (4 straps. 4 karabiners and 3 delta maillons for attaching to your lifting / lowering system) is sold seperately.

Technical Information

  • Size: Width 68cm across both the shoulder and hip areas.
  • Length: 2.05m (6ft 6).
  • Packed size including bag 75 x 30cm.
  • Straps hold 80kg each.
  • 3 x 50mm lifting handle straps 2000kg loops.
  • 2000kg lifting loops (orange).
  • Blue drag loop.
  • Foot tape stops the body slipping down.
  • Drainage hole on base.
  • Roll from head down (drain hole also lets air out).

IMPORTANT NOTE: We strongly recommend that anyone using this rescue stretcher attends training in its use. Courses will be tailored to your specific needs and are normally done at your location. Please contact us for further details.





Manufacturer's Downloads

Declaration Of Conformity - SAR Evac Body Splint Stretcher



Specification

Stretcher

Stretcher Type
Confined Space Stretcher, Evacuation Stretcher,
Stretcher Type
Horizontal Lifting, Vertical Lifting, Confined Space,
With/Without Lifting Bridle
Stretcher without Lifting bridle, Stretcher with Lifting Bridle,
With/Without Bag
With Bag
Confined Space
Yes

General

Industrial or Sport Use
Industrial
Colour
Black
Orange
Camo
 Camo
