Petzl Tandem Pulley

Code: P21
£49.20
(inc. VAT)

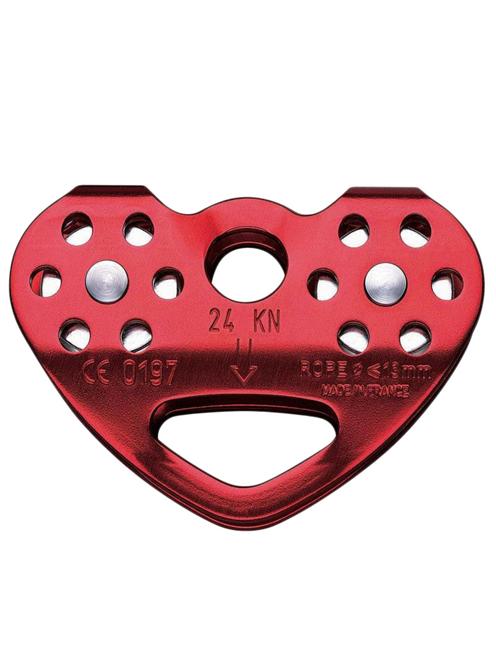

Petzl Tandem Pulley

The Petzl Tandem is a durable carriage pulley designed for low-angle Tyrolean Traverses but can also be used in haul systems. It has a slower maximum allowable speed than the Tandem Speed and can only be used on ropes.

Full description

Description

Petzl Tandem Pulley


Key Features

  • For use only on rope
  • Stainless steel sheaves for extended durability
  • Self-lubricating bushings
  • Main attachment point accepts up to 3 karabiners
  • Fixed cheeks
  • Maximum allowable speed: 10 m/s
  • Strength – 10kN Working Load Limit (WLL)
  • Efficiency – 71%
  • Breaking Load (MBS): 24kN


Rope compatibility

Up to 13mm for rope


Different versions

Petzl Tandem Speed


Accessories

Petzl Fixe
Petzl Pro Traxion
Petzl OK


Cleaning

Wash and rinse in clean water using pure soap
+30°C / 86°F (max.)



Drying

Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)



Manufacturer's Downloads



Specification

Tandem Pulley (In-Line)

Pulley Type
Tandem (In-line)
Pulleys Cheek
Fixed Cheek
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
21-30kN
Pulley Efficiency
Bushings
Sheave Diameter (mm)
21mm
Pulley Efficiency
71%
Maximum Rope Diameter (mm)
13mm
Working Load Limit (kN)
10kN
Max Breaking Strength (kN)
24kN

General

Industrial or Sport Use
Industrial
Material
Aluminium Body, Aluminium Sheave,
Conformity
UIAA
CE EN12278
Weight (g)
195g
Operating Temperature from
-40°C / -40°F
Operating Temperature to
+80°C / +176°F
Lifetime
Unlimited
Guarantee
3 Years
