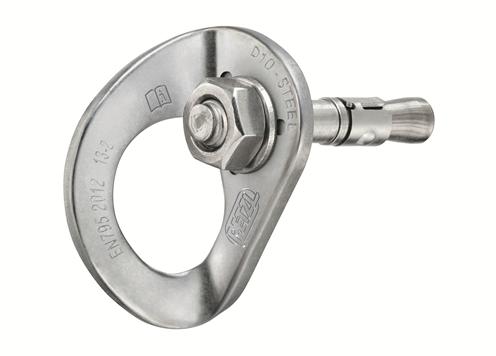

Petzl Steel Coeur Hanger Plate and Expansion Bolt 10mm - 20

Code: P36BA10-20
£67.20
(inc. VAT)

Petzl Coeur Goujon Complete steel anchor assembly 10mm - 20 Pack

Multi-directional, steel hanger plate with expansion bolt 10mm, with anti-rotation system. Standard steel designed for interior uses or non-permanent installations. Pack of 20

Full description

Description

Petzl Coeur Goujon Complete steel anchor assembly 10mm - 20 Pack

Comprised of a Coeur hanger, expansion bolt and nut, these Petzl anchors can be fixed into a variety of different mediums (rock, concrete etc). Installation should be done by a suitably trained and qualified installer.
Standard steel hanger plate and expansion bolt designed for interior uses or non-permanent installations.

Easy clipping

Featuring a large attachment hole, Petzl hangers facilitate clipping karabiners and allow two karabiners to be installed in the same anchor.

Preventing connector wear

Petzl hangers are characterized by high thickness, and rounded edges on the attachment holes. This construction minimizes wear on connectors, regardless of their material composition.

Hanger anti-rotation system

Petzl hangers are textured on the back side that is in contact with the structure (concrete, rock...). This helps prevent the hanger turning when the anchor is being installed, or when it is heavily side-loaded in use.





Manufacturer's Downloads



Specification

Bolts & Hanger Plates

Anchors Type
Removable Bolt & Hanger Plate
Bolt Size
10mm
Resistance to cutting on concrete
50 Mpa 23kN
Pull-out strength in concrete
50MPa 15kN
Drill Bit Size
10mm
Drill Depth
85mm
Breaking Strength kN
23kN
Size
10mm
Weight (g)
110g

General

Industrial or Sport Use
Industrial
Material
Steel
Conformity
CE EN959
CE EN795 Class A
Pack Size
20 units
Pack Weight
2200g
