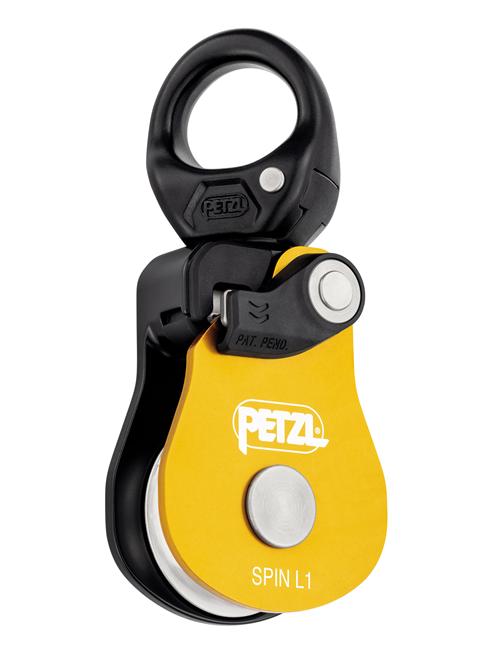

Petzl Spin L1 Swivel Pulley

The Petzl Spin L1 can be opened even when attached to the anchor, this pulley is designed for maximum simplicity in setting up hauling or load deviation systems, and tyroleans. The large diameter sheave mounted on sealed ball bearings gives it excellent efficiency. The swivel facilitates handling, allowing the pulley to be oriented under load, and direct connection of karabiners, ropes or slings.

Full description

Description

Petzl Spin L1 Swivel Pulley


Key Features

  • Large diameter (38mm) sheave mounted on sealed ball bearings
  • Swing cheek
  • High Strength – 8kN Working Load Limit (WLL)
  • Very high efficiency – 95%
  • Breaking Load (MBS): 36kN
  • Weight 290g


Rope compatibility

7mm to 13mm


Different versions

Spin L1D
Spin L2


Accessories

Petzl 10mm OK Oval Triact Karabiner
Petzl 11mm Aluminium AmD Triple Action Karabiner
Petzl Bm'D Gray Lightweight High Strength Karabiner
Petzl Oxan Triple Action Oval Steel Karabiner
Petzl Vulcan Triact-Lock Karabiner - International



Cleaning

Wash and rinse in clean water using pure soap
+30°C / 86°F (max.)

Drying

Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)



Manufacturer's Downloads



Specification

Pulley

Pulley Type
Single
Pulleys Cheek
Swing Cheek
Pulleys Additional Features
Integrated Swivel
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
31-40kN
Pulley Efficiency
Bearing / High Efficiency
Sheave Diameter (mm)
38mm
Pulley Efficiency
95%
Minimum Rope Diameter (mm)
7mm
Maximum Rope Diameter (mm)
13mm
Working Load Limit (kN)
8kN
Max Breaking Strength (kN)
36kN

General

Industrial or Sport Use
Industrial
Colour
Black,
Black / Yellow
Black / Yellow
,
Material
Aluminium, Nylon, Stainless Steel,
Conformity
UIAA
NFPA 1983 General Use
CE EN12278
Weight (g)
290g
Operating Temperature from
+80°C / +176°F
Operating Temperature to
-40°C / -40°F
Lifetime
Unlimited
Guarantee
3 Years
