Description

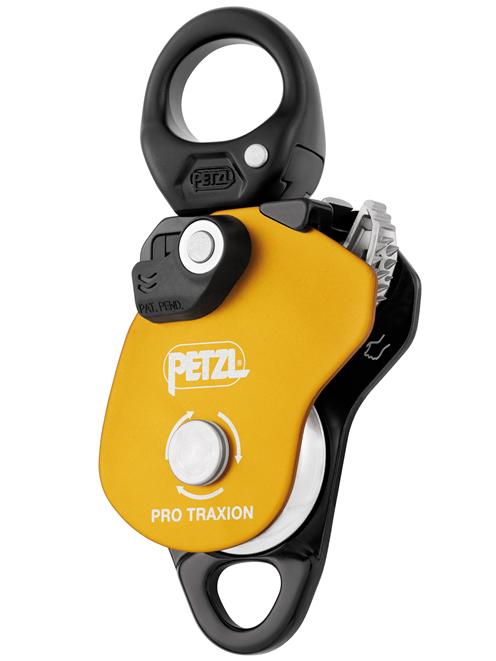

Petzl Pro Traxion Pulley With Swivel 2023
Possible to open, even when attached to the anchor, the Pro Traxion progress-capture pulley is designed for setting up haul systems. With a large diameter sheave mounted on sealed ball bearings and excellent efficiency, it is particularly suitable for hauling heavy loads. The swivel makes it easier to operate, allowing the pulley to be oriented under load and for direct connection of carabiners, ropes, or slings.
Key Features
- Drop-resistant and easy to operate:
- Triple-action opening of the moving side plate is quick and easy, even with gloves
- Rope can be installed when the pulley is connected to the anchor
- Red indicator provides a visual warning when the moving side plate is unlocked
- Special side plate design protects the rope path
- Designed for hauling heavy loads:
- Large diameter aluminium sheave mounted on sealed ball bearings for excellent efficiency
- Swivel allows pulley to be oriented under load
- Versatile:
- The swivel and auxiliary attachment point allow the use of carabiners, ropes, and slings for easier rigging
- Toothed cam with self-cleaning slot optimizes performance under a variety of conditions, such as when the ropes are frozen or dirty
- May be used as a simple pulley by locking the cam in the raised position
- Auxiliary attachment point can be used to set up a haul system
- Hole in the cam for installation of a remote control cord
Specifications
- Weight: 295 g
- Certification(s): CE EN 567, CE EN 12278, CE EN 12841 type B, UKCA, NFPA 2500 Technical Use Pulley and Rope grab
- Material(s): Aluminium, stainless steel, nylon
- Min. rope diameter: 8 mm
- Max. rope diameter: 13 mm
- Sheave type: Sealed ball bearings
- Sheave diameter: 38 mm
- Breaking strength - rope clamp: 4 kN
- Breaking strength - pulley: 11.5 kN x 2 = 23 kN
- Efficiency: 95 %
Cleaning
Wash and rinse in clean water using pure soap.
+30°C / 86°F (max.)
Drying
Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)
Manufacturer's Downloads
Specification
Pulley
|
Pulley Type
|
Single
|
|---|---|
|
Pulleys Cheek
|
Swing Cheek
|
|
Pulleys Additional Features
|
Progress Capture / One-way Lock
|
|
Pulley Wheel Material
|
Stainless Steel
|
|
Pulley Efficiency
|
Bearing / High Efficiency
|
|
Sheave Diameter (mm)
|
38mm
|
|
Pulley Efficiency
|
95%
|
|
Gate Type
|
Triple Action (Locksafe)
|
|
Minimum Rope Diameter (mm)
|
8mm
|
|
Maximum Rope Diameter (mm)
|
13mm
|
|
Working Load Limit (kN)
|
5kN
|
|
Max Breaking Strength (kN)
|
22kN
|
|
Working Load (progress capture)
|
2.5kN
|
|
Breaking Strength (progress capture)
|
4kN
|
General
|
Industrial or Sport Use
|
Sport
|
|---|---|
|
Material
|
Aluminium, Nylon, Stainless Steel,
|
|
Conformity
|
CE EN567
CE EN12841 Type B
CE EN12278
UKCA
NFPA 2500 Rope Grab Technical Use
|
|
Weight (g)
|
295g
|
|
Operating Temperature from
|
-40°C / -40°F
|
|
Operating Temperature to
|
+80°C / +176°F
|
|
Lifetime
|
Unlimited
|
|
Guarantee
|
3 years
|
