Description

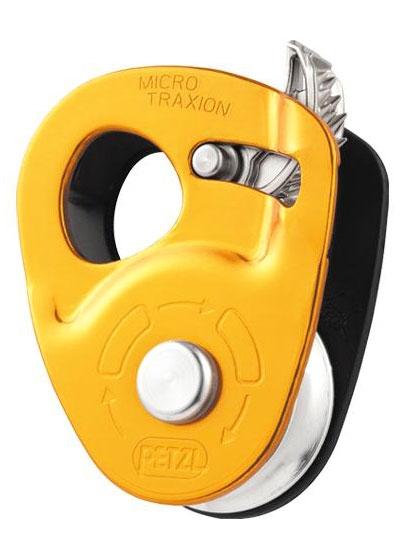

Petzl Micro Traxion Pulley
Key Features
- Progress capture
- Efficiency – 91%
- 25mm sheave mounted on sealed ball bearings
- Toothed cam with self-cleaning slot which helps prevent dirty and ice build-up
- Strength – Progress Capture – 2.5kN Working Load Limit (WLL)
- Strength – Pulley – 5kN Working Load Limit (WLL)
- Breaking Load (MBS) Progress Capture - 4kN
- Breaking Load (MBS) Pulley - 15kN
Rope compatibility
Low stretch rope conforming to EN 1891 Type A or Dynamic rope to EN 892 with a diameter between 8mm-11mm
Accessories
Cleaning
Wash and rinse in clean water using pure soap
+30°C / 86°F (max.)
Drying
Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)
Manufacturer's Downloads
Specification
Pulley
Pulley Type
|
Single
|
---|---|
Pulleys Cheek
|
Swing Cheek
|
Pulleys Additional Features
|
Progress Capture / One-way Lock
|
Pulley Wheel Material
|
Aluminium
|
Pulley Rating (Breaking Load) kN
|
0-15kN
|
Pulley Efficiency
|
Bearing / High Efficiency
|
Sheave Diameter (mm)
|
25mm
|
Pulley Efficiency
|
91%
|
Pulley Locking
|
One Way Locking
|
Minimum Rope Diameter (mm)
|
8mm
|
Maximum Rope Diameter (mm)
|
11mm
|
Working Load Limit (kN)
|
5kN
|
Max Breaking Strength (kN)
|
15kN
|
General
Industrial or Sport Use
|
Sport
|
---|---|
Material
|
Aluminium, Nylon, Steel, Stainless Steel,
|
Conformity
|
UIAA
CE EN567
EAC
|
Weight (g)
|
85g
|
Operating Temperature from
|
-40°C / -40°F
|
Operating Temperature to
|
+80°C / +176°F
|
Lifetime
|
Unlimited
|
Guarantee
|
3 Years
|
