Petzl Kootenay Pulley
Petzl Kootenay Knot-passing Pulley

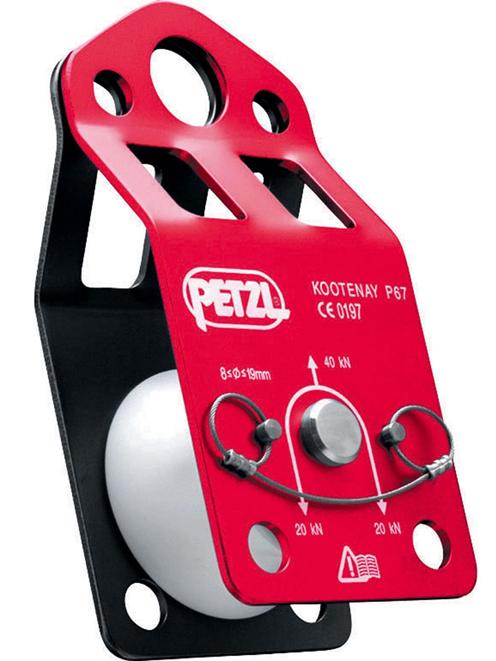

The Petzl Kootenay is a high clearance, high efficiency pulley designed for passing joining knots. It is designed for use on Tyrolean Traverses or long raises. It can also be used as a high strength anchor point.
Fast Delivery
Deliveries
Coronavirus latest: We are still open for business! Please click here for our full statement on our operations.
We pride ourselves on our excellent service and aim to despatch all orders promptly. If you order before 3pm Monday to Friday we will try to send it out that day, for next working day delivery. Orders:
- placed after 3pm Monday to Thursday will be processed the next day
- placed after 3pm on a Friday or at a weekend or on a Bank Holiday will be processed on the next working day
- Orders to the Highlands, Islands and Out of Area may be a two-day delivery and overseas will be longer
Please call us for time-critical orders, so we can process the order as a matter of urgency and confirm the delivery schedule.
All goods are subject to availability. If we can't supply your goods within 30 days from the date of order, we will inform you immediately and let you know the expected delivery date.
Courier service
If you opt for a courier delivery, you will receive an email or text on the day we despatch your order, informing you that it is enroute. On the morning of delivery, at around 07:30, you will receive a further email or text giving you a 1-hour delivery time slot. Please therefore ensure that you have given us the correct mobile number and email address.
Couriers are extremely busy during Christmas and the sales, so please allow extra time.
We will not be held liable for any consequential loss caused by late or failed deliveries.
Timed deliveries / Saturday & Sunday deliveries
We can arrange timed deliveries for:
Weekdays:
- pre-10:30am
- pre-12 (midday)
Weekends:
- Saturday pre-10:30am
- Saturday pre-12 (midday)
- Sunday (anytime)
Some of the timed delivery options are available via the website, for others including a Sunday delivery, please call the office for a confirmed price and to arrange the alternate delivery.
Important Note:
Timed deliveries are subject to stock availability (we will contact you if any of your order is not in stock, so you can confirm if you would like us to split the delivery) and must be placed by 3pm Monday to Friday. Please call us if it's after 3pm as we may still be able to catch our couriers.
Description
Petzl Kootenay Knot-passing Pulley
Key Features
- Large diameter 76mm high strength thermoplastic (Polyoxymethylene) sheaf
- High clearance rope channel
- Sealed ball bearings
- Swing cheeks
- Stainless Steel sheave immobilising pins
- Strength – 10kN Working Load Limit (WLL)
- Efficiency – 71%
- Anchor point – 30kN
- Breaking Load (MBS): 40kN
Warning: Remove the sheave immobilising pins before using as a pulley.
Rope compatibility
Low stretch rope conforming to EN 1891 Type A or Dynamic rope to EN 892 with a diameter between 8mm-19mm
Cleaning
Wash and rinse in clean water using pure soap
+30°C / 86°F (max.)
Drying
Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)
Manufacturer's Downloads
Specification
Pulley
|
Pulley Type
|
Single
|
|---|---|
|
Pulleys Cheek
|
Swing Cheek
|
|
Pulley Wheel Material
|
Plastic
|
|
Pulley Rating (Breaking Load) kN
|
31-40kN
|
|
Pulley Efficiency
|
Bearing / High Efficiency
|
|
Minimum Rope Diameter (mm)
|
8mm
|
|
Maximum Rope Diameter (mm)
|
19mm
|
|
Working Load Limit (kN)
|
10kN
|
|
Max Breaking Strength (kN)
|
40kN
|
General
|
Industrial or Sport Use
|
Industrial
|
|---|---|
|
Conformity
|
CE EN12278
|
|
Weight (g)
|
1390g
|
|
Operating Temperature from
|
-40°C / -40°F
|
|
Operating Temperature to
|
+80°C / +176°F
|
|
Lifetime
|
Unlimited
|
|
Guarantee
|
3 Years
|
|
