Petzl Stainless Steel Hanger Plate and Expansion Bolt 12mm

Code: P36BS12-20
£156.00
RRP £162.70
Save £6.70
(inc. VAT)

Petzl Coeur Goujon Complete Stainless Steel anchor assembly 12mm - 20 Pack

Multi-directional, Stainless steel hanger plate with expansion bolt 12mm, with anti-rotation system. Stainless steel designed for typical exterior use. Pack of 20

Full description

Description

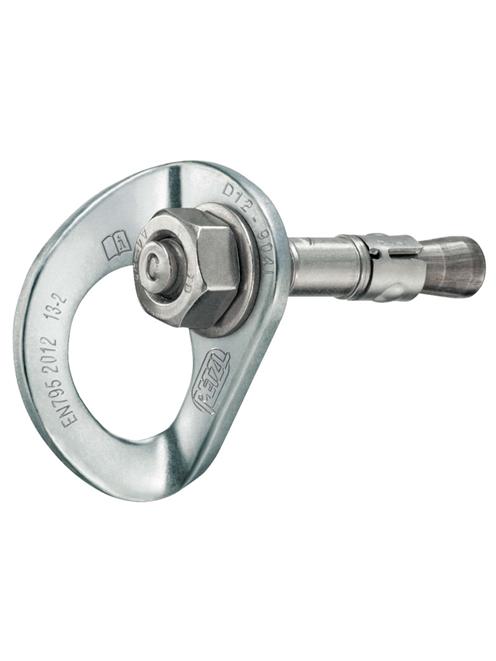

Petzl Coeur Goujon Complete Stainless Steel anchor assembly 12mm - 20 Pack

Comprised of a Coeur hanger, expansion bolt and nut, these Petzl anchors can be fixed into a variety of different mediums (rock, concrete etc). Installation should be done by a suitably trained and qualified installer. (Stainless Steel Hanger Plate manufactured for typical exterior use.)

Easy clipping

Featuring a large attachment hole, Petzl hangers facilitate clipping karabiners and allow two karabiners to be installed in the same anchor.

Preventing connector wear

Petzl hangers are characterized by high thickness, and rounded edges on the attachment holes. This construction minimizes wear on connectors, regardless of their material composition.

Hanger anti-rotation system

Petzl hangers are textured on the back side that is in contact with the structure (concrete, rock...). This helps prevent the hanger turning when the anchor is being installed, or when it is heavily side-loaded in use.





Manufacturer's Downloads



Specification

Bolts & Hanger Plates

Anchors Type
Bolt & Hanger Plate
Bolt Size
12mm
Resistance to cutting on concrete
50MPa 25kN
Pull-out strength in concrete
50MPa 18kN
Drill Bit Size
12mm
Drill Depth
85mm
Breaking Strength kN
25kN
Weight (g)
135g

General

Industrial or Sport Use
Industrial
Material
Stainless Steel
Conformity
CE EN959
CE EN795 2012
Pack Size
20 units
Pack Weight
2700g
