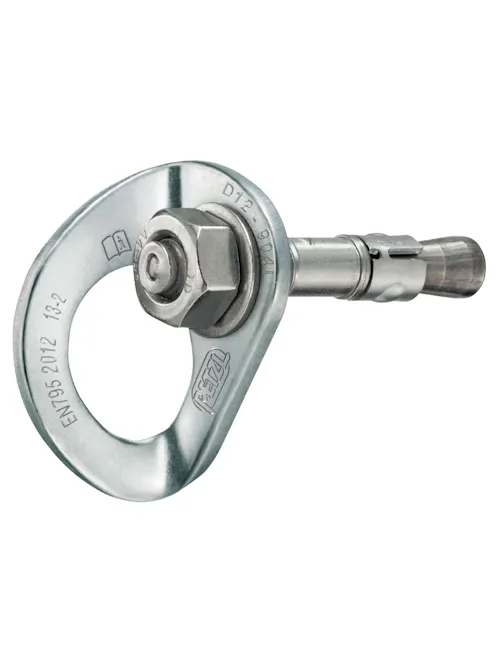

Petzl Coeur Bolt Stainless Steel 10mm hanger plate – 20 pack

Code: P36BS10-20
£150.00
(inc. VAT)

Petzl Coeur Bolt Stainless Steel 10mm hanger plate – 20 pack

The Petzl Coeur Bolt Stainless Steel 10mm hanger plate is designed for outdoor environments not aggressive enough to cause Stress Corrosion Cracking (SCC). Pack of 20

Full description

Description

Petzl Coeur Bolt Stainless Steel 10mm hanger plate – 20 pack


Key Features.

  • Complete expansion bolt and hanger assembly
  • Stainless Steel (316L) for outdoor environments
  • Large connection hole accepts up to 2 karabiners
  • Rounded edges and thickness of hanger plate limits wear of connectors
  • Anti-rotation system helps prevent the hanger from turning
  • Curved top to hanger helps prevent connectors from cross loading
  • Strength: 25kN


 Warnings:

  • Anchor strength can be near zero if poorly installed
  • Do not combine bolts, nuts, washers or hangers of dissimilar metals
  • Use a bolt diameter that is appropriate for the hanger e.g. 10 mm diameter bolt for 10 mm diameter hanger
  • Strength obtained in 50 MPa concrete (high quality concrete, or rock). Common concrete has a weaker compressive strength, about 25 MPa


Cleaning

Wash and rinse in clean water using pure soap
+30°C / 86°F (max.)

Drying

Dry in a well-ventilated place away from direct sources of heat or sunlight.
+30°C / 86°F (max.)




Manufacturer's Downloads



Specification

Bolts & Hanger Plates

Anchors Type
Bolt & Hanger Plate
Bolt Size
10mm
Resistance to cutting on concrete
50MPa 25kN
Pull-out strength in concrete
50MPa 15kN
Drill Bit Size
10mm
Drill Depth
70mm
Breaking Strength kN
25kN
Weight (g)
110g

General

Industrial or Sport Use
Industrial
Material
Stainless Steel
Conformity
CE EN959
CE EN795 2012
Pack Size
20 units
Pack Weight
2200g
Operating Temperature from
-40°C / -40°F
Operating Temperature to
+80°C / +176°F
Lifetime
Unlimited
Guarantee
3 Years
