ISC Medium Aluminium Single Pulley

Code: RP032
£31.14
(inc. VAT)

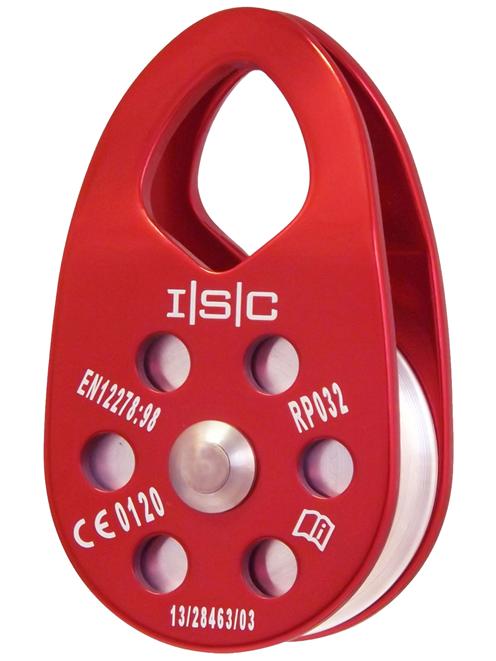

ISC Medium Aluminium Single Pulley

This ISC RP032 is a lightweight Aluminium Eiger pulley made from high-strength aluminium.  Manufactured with bushings for high loads at low speed. Bushings offer great performance in lightweight applications.

Full description

Description

ISC Medium Aluminium Single Pulley

This small, strong, lightweight ISC pulley is ideal for most applications, Rated to 36kN



Key Features

  • Compact and lightweight
  • Swing cheek
  • Height:  90mm
  • Width:  52mm
  • Depth:  25mm
  • Weight:  158 g
  • Rope Size:  Max 13 mm
  • Body Material:  Aluminium
  • Wheel Material:  Aluminium
  • Finish:  Anodized
  • Approved Standards: CE EN 12278
  • Individually Serial Numbered



Manufacturer's Downloads



Specification

Pulley

Pulley Type
Single
Pulleys Cheek
Swing Cheek
Pulley Wheel Material
Aluminium
Pulley Rating (Breaking Load) kN
31-40kN
Pulley Efficiency
Bushings
Maximum Rope Diameter (mm)
13mm
Max Breaking Strength (kN)
36kN

General

Industrial or Sport Use
Industrial
Material
Aluminium Body, Aluminium Sheave,
Conformity
CE EN12278
Weight (g)
158g
