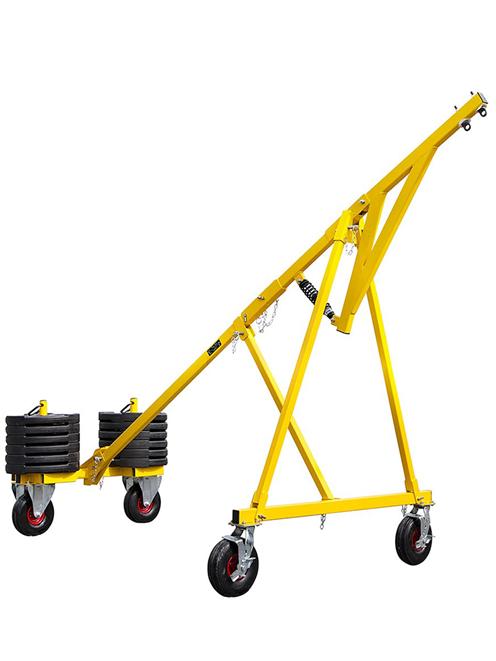

ISC Mobile A-Frame Deadweight Anchor

Code:
From £6,204.00
(inc. VAT)

ISC A-Frame Deadweight Anchor

The A Frame Deadweight Rope Access Anchor is suitable for use on flat roof surfaces behind a parapet wall, with a minimum height of 300mm and a maximum height of 1.5m.

Full description

Description

ISC A-Frame Deadweight Anchor

The DW200.3 A-Frame has been designed for use with Olympic Weight Plates. The A-Frame requires 12 x 25kg weight plates, which can be supplied. The device can also be purchased without weight plates, reducing shipping costs by allowing users to purchase weights locally.

The A-Frame is fitted with pneumatic tyres as standard, or can be fitted/supplied with solid wheels, on request.

Product Information

Suitable for use on flat roof surface
(Only 300mm upstand required)

2180mm (7'1") High anchor points
Enables user to easily start their descent

No damage to surfaces
Does not require penetration of roof membrane

Built in shock absorber

Unit can easily be moved sideways
Reducing the need for re-rigging

Minimal assembly required


Specification:

  • Weight: 387kg
  • Weight of individual weights: 25Kg
  • Weight of individual weights: 55 1/9lbs
  • Body material: Steel
  • Finish: Powder coated Yellow
  • Safe Working Load (SWL): 200Kg
  • Approved standards EN795:2012
  • Individually Serial Numbered

Notes:

This product must be used against an up-stand (structural balustrade) of minimum 300mm (12"/1ft) height. The maximum height of the up-stand should not exceed 1500mm (59"/ 4.92ft).

Style/design of weight plate may vary from the weight plate shown




Manufacturer's Downloads



Specification

Deadweight Anchor

Body Finish
Powder Coated Orange
Individual Weights
25kg
No of Indiviual Weights
12 Weights
Safe Working Load
200kg
Collect from Manufacturer Abaris / Delivery
Delivery, Collect from Abaris,

General

Industrial or Sport Use
Industrial
Body Material
Steel
Colour
Black / Yellow
Black / Yellow
Conformity
CE EN795 2012
Weight (kg)
387kg
