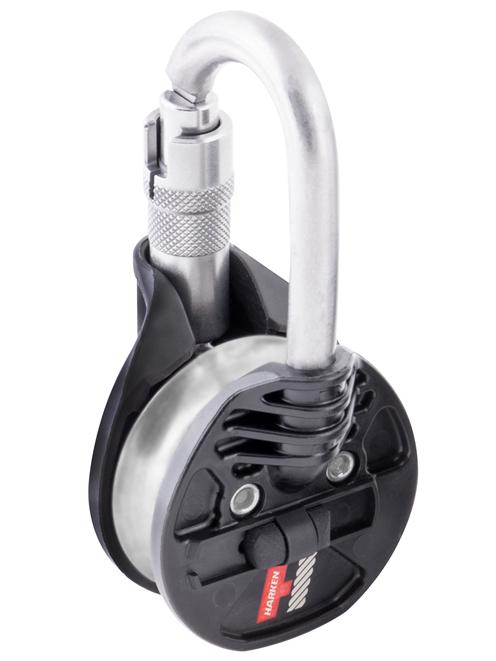

Harken Snatchet 65 Block

Harken
Code: INSN65
£228.00
(inc. VAT)

Harken Snatchet 65 Block

This product’s name says it all. Snatchet pushes together the ease and familiarity of carabiner rigging with a high-efficiency pulley to create a very flexible piece of powerful, yet compact, lifting equipment.

Full description

Description

Harken Snatchet 65 Block

This product’s name says it all. Snatchet pushes together the ease and familiarity of carabiner rigging with a high-efficiency pulley to create a very flexible piece of powerful, yet compact, lifting equipment. Available so that you have a choice between ratcheting and non-ratcheting versions, Snatchet can be inserted into the middle of an existing rig eliminating the need to take the load off a loaded line and rerig. Robust carabiners and wide stainless sheaves rig easily and provide uncommon flexibility.

Key Features

  • Integral carabiner decreases distance between anchor point and the rope travel position
  • Rope can be engaged without disconnecting the anchor point
  • Large pulley diameter reduces friction and rope stress
  • No risk of misalignment between pulley and carabiner that could break the system

Specifications

  • Conformity: EN 362:2004/M, EN 12278:2007, ANSI Z359.12-2019
  • Maximum working load: 10 kN
  • Breaking load: 38 kN
  • Maximum line: 14 mm
  • Height: 72 mm
  • Width: 146.5 mm
  • Weight: 178 g



Manufacturer's Downloads



Specification

Pulley

Pulley Type
Single
Pulleys Additional Features
Integral Carabiner
Maximum Rope Diameter (mm)
14mm
Working Load Limit (kN)
10kN
Max Breaking Strength (kN)
38kN

General

Industrial or Sport Use
Industrial
Dimensions
146.5 mm x 72mm
Conformity
ANSI Z359.12
CE EN362
CE EN12278
Weight (g)
178g
