Edelrid Pinch Semi Automatic Belay Devices

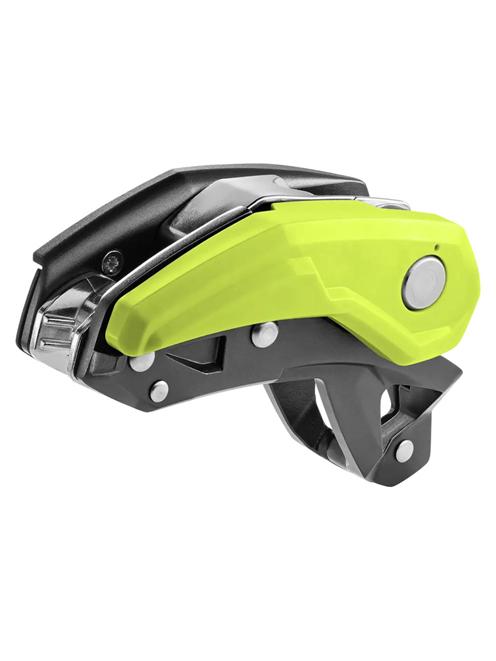

Edelrid Pinch Semi Automatic Belay Device

The linear rope run through the frontal steel braking grooves reduces rope tangles when lowering and abseiling. In addition to the lowering lever, the speed can be controlled by the pressure of the braking hand, which contributes to increased braking rope control, especially when using thin, soft ropes. The anti-panic function provides added safety not only for beginners. A special feature is the integrated second braking tier, which enables controlled lowering by pulling the lowering lever further when securing particularly light persons or in systems with high rope friction. Users and experienced rope access technicians can permanently deactivate the anti-panic function using a screw supplied. Another plus: When used on multi-pitch lengths, the PINCH is the only device on the market that can be attached to the belay station in four different directions in 90° increments. This means that the lowering lever can always be brought into a position in which it can be operated freely.

Key Features

• Assisted braking belay device for versatile use in sport climbing, multi-pitch climbing and rope access
• Position close to the body due to direct harness attachment increases brake rope control and improves usability
• Direct harness attachment eliminates the risk of cross-loading the belay carabiner
• Deactivatable anti-panic function for increased safety by automatically locking the device if the lowering lever is pulled too far backwards
• Second braking tier if the anti-panic function is activated too frequently due to insufficient load and/or excessive rope friction
• Frontal steel brake grooves allow the rope to run linearly and ensure less rope tangling, increased durability and prevent unsightly discoloration that occurs when the rope rubs against aluminium
• Attachment to the belay station in four different directions in 90° increments
• Equal operation for right and left-handed users
• Suitable for static ropes from 10.0 to 10.5 mm diameter (120 kg max. user weight)
• Suitable for dynamic ropes from 8.5 to 10.5 mm diameter

FAQ's

Can you go hands free on it?

The braking hand must always hold the braking rope.

How does the device behave if both hands are not on the PINCH or at least, for whatever reason, the braking hand is not on the rope? Is there still a blocking?

The assisted braking mechanism is designed to activate independently of the braking hand. However, a braking hand on the rope is required at all times. Refer to our user manual for further details.

Can it be used for the lead belay?

Yes, that is one of the main primary applications of the PINCH.  for further details.

If yes, then the teeth given in the front for more friction are harmful to the rope due to dynamic belay shock?

There are no teeth in the frontal groove. The braking ribs add friction when using softer ropes or smaller diameter ropes, and are designed to guide the rope smoothly through the device.

Can you belay from above with it, also directly from the anchor without a locking carabiner?

Yes. Check out our Multipitch Tutorial for the PINCH here.

Is rope soloing possible?

We are currently in the process of evaluating the PINCH for rope soloing. For the current status, please refer to our user manual.

Is this rated for lead rope soloing?

We are currently in the process of evaluating the PINCH for rope soloing. For the current status, please refer to our user manual.

How do you fix the rope to a strand when abseiling?

The rope can be locked at the anchor as shown in this video at 03:00 minutes. We are currently preparing a separate video tutorial covering various techniques. Abseiling on single ropes is not a new technique and advice can also be found in alpine climbing courses or educational books.

Will the rope rub on the belay loop?

No, the cam has a stopper that keeps loop and rope separate.

Is there a risk of non-locking (e.g., cam pushing against a rock) as with similar products?

The PINCH offers 4 attachment points in 90°-increments of orientation when fixing it to the anchor point. A preferable orientation would be where both the lever is accessible and the cam works freely (as in minute 02:18 of our PINCH Multipitch Tutorial here).
