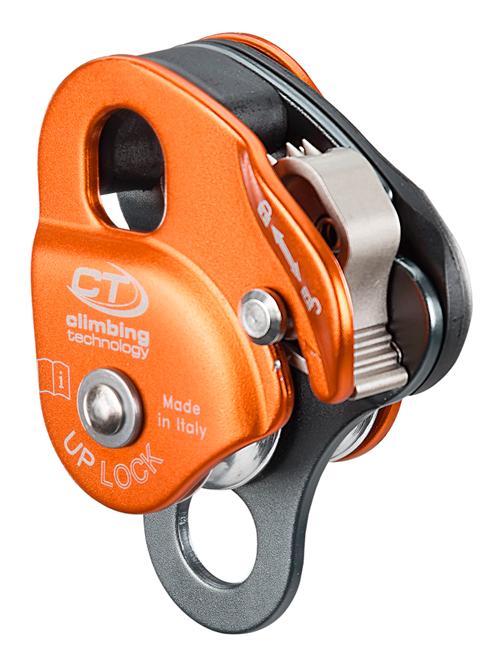

CT Climbing Technology Technology Up Lock Double Captive Pulley

Code: 2P672
£99.00
(inc. VAT)

CT Climbing Technology Up Lock Double Captive Pulley

Double locking pulley, designed for the creation of an auto-blocking rescue winch in combination with the Up Roll pulley.

Full description

Description

CT Climbing Technology Up Lock Double Captive Pulley

Double locking pulley, designed for the creation of an auto-blocking rescue winch in combination with the Up Roll pulley.

Key Features

  • Anodized light alloy side plates and pulleys, cast stainless steel cam
  • Pulleys mounted on ball bearings
  • Equipped with freelock system which allows to unlock or lock the cam through the use of one hand, even when wearing gloves

Technical specifications

  • Side plates type: Swinging
  • Minimum diameter: 8 mm
  • Maximum diameter: 11 mm
  • Maximum working load: 6 kN
  • Breaking strength: 30 kN
  • Efficiency (%): 90
  • Weight: 175 g
  • Conformity: CE EN 12278, CE EN 567, CE 0333


Manufacturer's Downloads



Specification

Pulley

Pulley Type
Double / Twin
Pulleys Cheek
Swing Cheek
Pulleys Additional Features
Progress Capture / One-way Lock
Pulley Wheel Material
Stainless Steel
Pulley Efficiency
Bearing / High Efficiency
Pulley Efficiency
90%
Minimum Rope Diameter (mm)
8mm
Maximum Rope Diameter (mm)
11mm
Working Load Limit (kN)
6kN
Max Breaking Strength (kN)
30kN

General

Industrial or Sport Use
Industrial
Colour
Grey / Orange
Grey / Orange
Material
Stainless Steel Sheave
Conformity
CE EN567
CE EN12278
CE 0333
Weight (g)
175g
