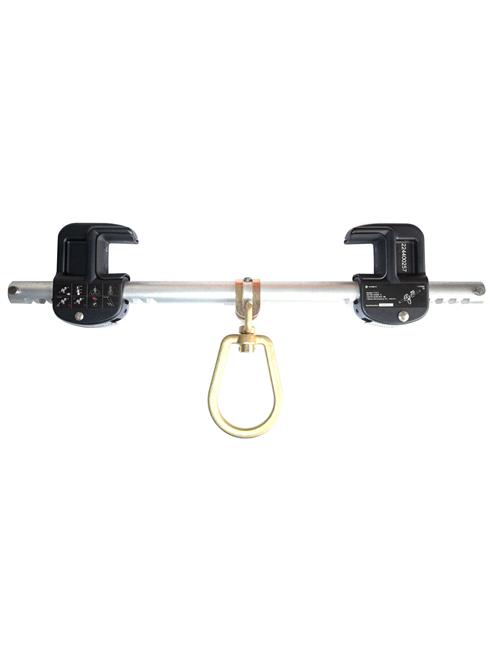

At Height UK Beam Slider
At Height UK Sliding I-Beam Anchor
A removable and reusable sliding I-beam anchor, easy to place and remove. This anchor is designed to easily glide along the beam while trailing the worker. This can be used at both overhead and foot level heights.
Fast Delivery
Deliveries
Coronavirus latest: We are still open for business! Please click here for our full statement on our operations.
We pride ourselves on our excellent service and aim to despatch all orders promptly. If you order before 3pm Monday to Friday we will try to send it out that day, for next working day delivery. Orders:
- placed after 3pm Monday to Thursday will be processed the next day
- placed after 3pm on a Friday or at a weekend or on a Bank Holiday will be processed on the next working day
- Orders to the Highlands, Islands and Out of Area may be a two-day delivery and overseas will be longer
Please call us for time-critical orders, so we can process the order as a matter of urgency and confirm the delivery schedule.
All goods are subject to availability. If we can't supply your goods within 30 days from the date of order, we will inform you immediately and let you know the expected delivery date.
Courier service
If you opt for a courier delivery, you will receive an email or text on the day we despatch your order, informing you that it is enroute. On the morning of delivery, at around 07:30, you will receive a further email or text giving you a 1-hour delivery time slot. Please therefore ensure that you have given us the correct mobile number and email address.
Couriers are extremely busy during Christmas and the sales, so please allow extra time.
We will not be held liable for any consequential loss caused by late or failed deliveries.
Timed deliveries / Saturday & Sunday deliveries
We can arrange timed deliveries for:
Weekdays:
- pre-10:30am
- pre-12 (midday)
Weekends:
- Saturday pre-10:30am
- Saturday pre-12 (midday)
- Sunday (anytime)
Some of the timed delivery options are available via the website, for others including a Sunday delivery, please call the office for a confirmed price and to arrange the alternate delivery.
Important Note:
Timed deliveries are subject to stock availability (we will contact you if any of your order is not in stock, so you can confirm if you would like us to split the delivery) and must be placed by 3pm Monday to Friday. Please call us if it's after 3pm as we may still be able to catch our couriers.
Description
At Height UK Sliding I-Beam Anchor
Beam Sliders from At Height UK. Used as an anchor point for fall protection and for rope access. The device is for use by one person and two persons in the event of a rescue. Each device is individually serial numbered.
Key Features
- Standards EN795: 2012/B
- Standards CEN/TS 16415:2013
- Working Load Limit 140kg
- I-Beam Dimensions Standard 105-310mm (CT101.3)
- I-Beam Dimensions Large 305-750mm (CT110.2)
- Min. Beam Thickness 6mm
- Max. Beam Thickness 30mm
Manufacturer's Downloads
Specification
Beam Anchor
|
Beam Anchor Use
|
Personal Fall Arrest or Restraint
|
|---|---|
|
Minimum Flange Width
|
105mm
|
|
Maximum Flange Width
|
310mm
|
|
Maximum Flange Depth
|
30mm
|
|
Working Load Limit (kg)
|
140kg
|
|
Clamp Link Type
|
Swivel
|
|
Size
|
105 – 310mm, 305 – 750mm,
|
|
Max User Weight
|
140kg
|
General
|
Industrial or Sport Use
|
Industrial
|
|---|---|
|
Conformity
|
CE EN795 2012
|
|
Weight (kg)
|
1.5kg
|
