Abtech Rescue Hauler Pulley System - Auto Locking 5:1

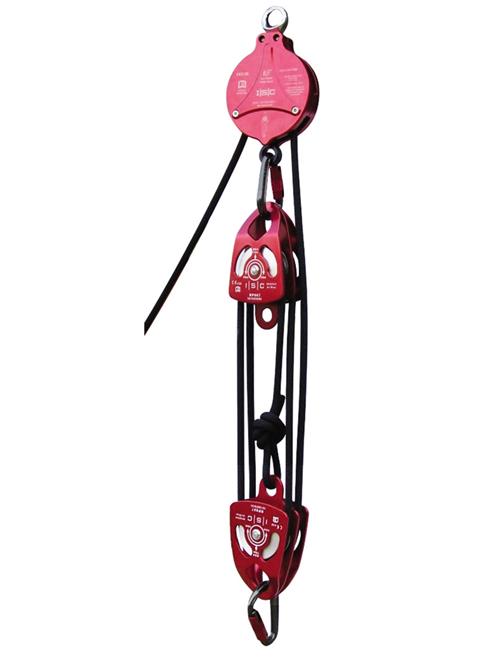

Abtech Rescue Hauler Pulley System
Auto-locking Rescue Hauler System with a working length of 15m - Suitable for lifting and lowering a load (including a casualty - Max. 250kg). Comprises the ISC R-ALF, 2 x Heavy duty twin pulleys and 11mm low stretch rope.
Fast Delivery
Deliveries
Coronavirus latest: We are still open for business! Please click here for our full statement on our operations.
We pride ourselves on our excellent service and aim to despatch all orders promptly. If you order before 3pm Monday to Friday we will try to send it out that day, for next working day delivery. Orders:
- placed after 3pm Monday to Thursday will be processed the next day
- placed after 3pm on a Friday or at a weekend or on a Bank Holiday will be processed on the next working day
- Orders to the Highlands, Islands and Out of Area may be a two-day delivery and overseas will be longer
Please call us for time-critical orders, so we can process the order as a matter of urgency and confirm the delivery schedule.
All goods are subject to availability. If we can't supply your goods within 30 days from the date of order, we will inform you immediately and let you know the expected delivery date.
Courier service
If you opt for a courier delivery, you will receive an email or text on the day we despatch your order, informing you that it is enroute. On the morning of delivery, at around 07:30, you will receive a further email or text giving you a 1-hour delivery time slot. Please therefore ensure that you have given us the correct mobile number and email address.
Couriers are extremely busy during Christmas and the sales, so please allow extra time.
We will not be held liable for any consequential loss caused by late or failed deliveries.
Timed deliveries / Saturday & Sunday deliveries
We can arrange timed deliveries for:
Weekdays:
- pre-10:30am
- pre-12 (midday)
Weekends:
- Saturday pre-10:30am
- Saturday pre-12 (midday)
- Sunday (anytime)
Some of the timed delivery options are available via the website, for others including a Sunday delivery, please call the office for a confirmed price and to arrange the alternate delivery.
Important Note:
Timed deliveries are subject to stock availability (we will contact you if any of your order is not in stock, so you can confirm if you would like us to split the delivery) and must be placed by 3pm Monday to Friday. Please call us if it's after 3pm as we may still be able to catch our couriers.
Description
Abtech Rescue Hauler Pulley System
Rescue configuration 5:1 auto-locking Hauler Pulley System - Standard 15m working length but others available on request (up to 200m so 40m working length if using in a 5:1 configuration). The R-ALF is auto-locking (release the load suddenly and it will lock - Lift the load up a little to unlock) and has a swivel connection point to reduce the risk of twisted ropes. The complete system also comprises 2 heavy duty twin pulleys and a triple action connector for attaching to the load. The rope length is 75m which gives a working length of 15m when configured to 5:1. Longer lengths are available on request.
Component Detailed Information:
R-ALF Pulley - with over-speed brake built in so that the pulley will lock on and hold when a fall occurs. The load rated becket eye on the R-ALF means that it can be used in combination with prussik pulleys to create a 3 : 1 or 5 : 1 Mechanical Advantage System.
The unique design of the R-ALF (design patent applied for), means that an internal brake is not required and therefore it is capable of several thousand cycles and many arrests (minimum 12 monthly service intervals apply).
Technical Information
- Weight: 1200g.
- Rope diameter range(mm): Approved 11mm EN1891-A Ropes Only.
- Number of persons: 2.
- Body material: Aluminium.
- Finish: Anodised.
- Colour: Red.
- Conformity: CE 0120, ANSI Z359 :4: 2007.
RP067 Large Prussik Minding Double Pulleys with load-rated beckets which are large enough to allow a karabiner to rotate fully.
- Weight: 760g.
- Compatible with rope diameter(mm): max 16mm.
- Body material: Aluminium.
- Wheel material: Aluminium.
- Finish: Anodised.
- Colour: Red.
- (MBS) Minimum Breaking Strength: 70kN.
- Conformity: EN12278, NFPA.
Manufacturer's Downloads
Specification
Pulley
|
Pulley Type
|
Pulley Systems
|
|---|---|
|
Pulley Wheel Material
|
Aluminium
|
|
Pulley Rating (Breaking Load) kN
|
51kN-Over
|
|
Pulley Locking
|
One Way Locking
|
|
Rescue Kits
|
Rescue Kits
|
General
|
Industrial or Sport Use
|
Industrial
|
|---|---|
|
Conformity
|
CE EN12278
|
