IKAR ABS4WH - Controlled Descent Device - Lift and Lower
IKAR ABS4WH - Controlled Descent Device - With an Automatic Speed Regulator
The IKAR controlled descent device is tested for a two person load, with friction braking horns on the housing, for manual control if required. This device has the option for lifting as well as lowering.
Fast Delivery
Deliveries
Coronavirus latest: We are still open for business! Please click here for our full statement on our operations.
We pride ourselves on our excellent service and aim to despatch all orders promptly. If you order before 3pm Monday to Friday we will try to send it out that day, for next working day delivery. Orders:
- placed after 3pm Monday to Thursday will be processed the next day
- placed after 3pm on a Friday or at a weekend or on a Bank Holiday will be processed on the next working day
- Orders to the Highlands, Islands and Out of Area may be a two-day delivery and overseas will be longer
Please call us for time-critical orders, so we can process the order as a matter of urgency and confirm the delivery schedule.
All goods are subject to availability. If we can't supply your goods within 30 days from the date of order, we will inform you immediately and let you know the expected delivery date.
Courier service
If you opt for a courier delivery, you will receive an email or text on the day we despatch your order, informing you that it is enroute. On the morning of delivery, at around 07:30, you will receive a further email or text giving you a 1-hour delivery time slot. Please therefore ensure that you have given us the correct mobile number and email address.
Couriers are extremely busy during Christmas and the sales, so please allow extra time.
We will not be held liable for any consequential loss caused by late or failed deliveries.
Timed deliveries / Saturday & Sunday deliveries
We can arrange timed deliveries for:
Weekdays:
- pre-10:30am
- pre-12 (midday)
Weekends:
- Saturday pre-10:30am
- Saturday pre-12 (midday)
- Sunday (anytime)
Some of the timed delivery options are available via the website, for others including a Sunday delivery, please call the office for a confirmed price and to arrange the alternate delivery.
Important Note:
Timed deliveries are subject to stock availability (we will contact you if any of your order is not in stock, so you can confirm if you would like us to split the delivery) and must be placed by 3pm Monday to Friday. Please call us if it's after 3pm as we may still be able to catch our couriers.
Description

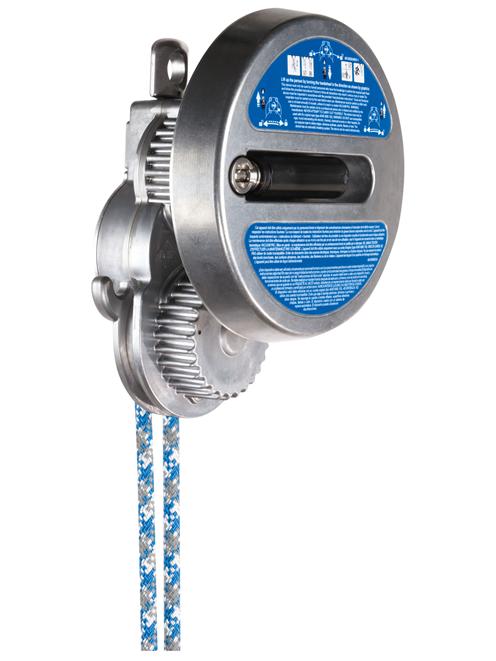

IKAR ABS4WH - Controlled Descent Device - With an Automatic Speed Regulator
The IKAR ABS4WH is designed to be used with 10.5mm kernmantle rope lifeline running through an aluminium housing. With a maximum descent Speed of 1.5 m/sec. The device has the option for lifting as well as lowering.
Key Features
- 10.5mm kernmantle rope lifeline running through an aluminium housing
- Aluminium double action hooks at both ends of the rope
- With friction braking horns on the housing, for manual control if required
- Nominal Load: 200 Kg
- Minimum Load: 70 Kg
- Proof load EN341: 250 Kg
- Proof Load EN1496: 300 Kg
- Static Proof Load: 20 kN
- 3800 Descent Metres with Nominal Load: 200 Kg
- 11000 Descent Metres with Minimum Load: 70 Kg
- Maximum Descent Height: 200 m
- Maximum Descent Speed: 1.5 m/sec
- Tested for 2 persons
- Deviation Points on the housing of the device
- Swivel eye anchor attachment point - ø16mm
- Lifting Nominal Load: 200 Kg
- Lifting Performance: 75 m
- Switchable Reverse Lock
- Lowering / Descending Rope KMS 105 to EN 1891:1998/A
Dont forget to order an attachment connector.
Manufacturer's Downloads
Specification
Controlled Rate Descender
|
Abseiling Height upto
|
150m
|
|---|---|
|
Device Functions
|
Controlled Rate Descents
|
|
Maximum Number of Persons
|
2
|
|
Abseiling Speed m/s
|
1.5m/s
|
|
Maximum Working Load (kg)
|
200kg
|
General
|
Industrial or Sport Use
|
Industrial
|
|---|---|
|
Conformity
|
CE EN1496
CE EN341
CE EN1891 Type A
|
|
Dimensions
|
250 x 200 x 128 mm
|
