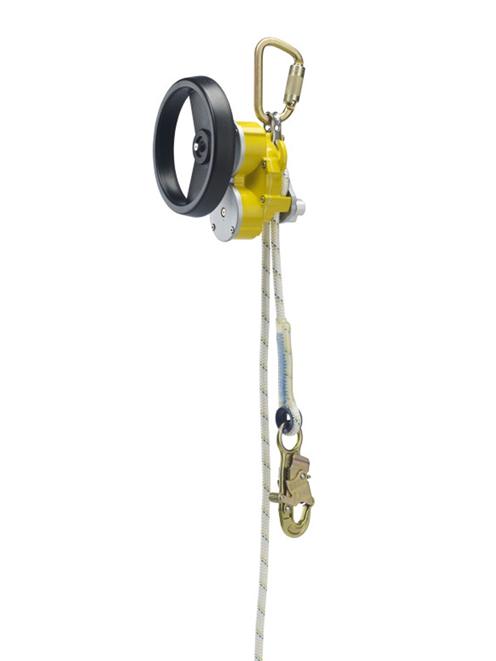

3M™ DBI-SALA® Rollgliss R550 Automatic CRD with Rescue Hub

3M™ DBI-SALA® Rollgliss R550 Rescue and Descent Device with Rescue Hub

Rope comes terminated with integrated (sewn in) double action connectors at each end. The device comes with a double action connector for attachment to an anchor point or anchor sling.

Highlights:

• Emergency rescue and evacuation from a wide variety of elevated work areas.
• Fully automatic controlled descent.
• Bidirectional design enables multiple rescues.
• Built-in rescue lifting handle.
• Integrated pigtail and cam cleat.
• 9.5 mm kernmantle rope lifeline.
• Rated for up to 1640 ft. (500 m) height for one user, 575 ft. (175 m) for two users.
• Compact and lightweight design.
• High strength corrosion resistant construction.
• Models available with lifting handle, ladder bracket and humidity case options.

Rope Length: Available in 10m rope length increments (please contact us if the length you require is not shown in the dropdown)

The Rollgliss R550 offers the choice of controlled descent rescue, evacuation or the versatility of assisted rescue with lifting capabilities.

This state-of-the-art, fully automatic controlled descent device can be used for rescue and evacuation from heights up to 1,640 ft. (500m) for one user 310 lbs. (141kg) or 575 ft. (175m) for two users totalling 620 lbs. (282kg).

It features 3/8 in. (9.5mm) super static kernmantle rope, and is configured with connecting hardware at each end of the lifeline to operate in both directions. During assisted-rescue scenarios, a fallen worker can be attached to the R550 device, raised to a point that allows their fall arrest device to be removed, then lowered to the ground safely.

Remember, during an emergency every second counts! You can count-on and trust the DBI-SALA™ Rollgliss™ systems, in use all over the world; Wind Turbine Construction & Maintenance, Offshore and Land-Based Oil Drilling Rigs, Utility Pole/Tower Construction & Maintenance, Fire & Emergency Rescue Services, Commercial Construction Sites, Industry and MRO Facilities, Government & Military Operations and more!

Key Features

• Emergency rescue and evacuation from a wide variety of elevated work areas.
  Offers a fast and reliable rescue solution that requires minimal training for added safety.
• Bidirectional design enables multiple rescues.
  For added versatility, as one end of the lifeline descends, the other ascends ready for another rescue.
• Integrated pigtail and cam cleat.
  Provides added control during rescue operations and allows you to stop or hold victim during assisted rescue scenarios.
• Rated for up to 1640 ft. (500 m) height for one user, 575 ft. (175 m) for two users.
  Unique design accommodates one user at 310 lbs. (140 kg) or two users totaling 620 lbs. (282 kg) for added jobsite flexibility.
• High strength corrosion resistant construction.
  Aluminium and stainless steel construction will stand up to the elements for an extended service life.
• Fully automatic controlled descent.
  Enables fast, safe and effective descent at 2-3 ft. (0.6-0.9 m) per second with no manipulation required by the user for complete ease of use.
• Built-in rescue lifting handle.
  Used during assisted rescue to slightly raise the fallen worker to disengage their fall protection system so descender can lower victim to the ground.
• Compact and lightweight design.
  Provides fast installation and easy operation enabling efficient and effective rescue.

Technical Information

• Capacity 1 Person = 130-310 lbs. (60-141 kg), 2 Person = 130-620 lbs. (60-282 kg)
• Brand DBI-SALA®
• Sub Brand Rollgliss™ R550
• CoWorker Controlled Ascent Yes
• CoWorker Controlled Descent Yes
• Descent Type Vertical
• Number Of Users Two
• iSafe Equipped Yes
• Model 3329030
• Physical Weight 4,60 kg (10,1lbs)
• Product Styles Automatic Controlled Descent
• Product Types Evacuation/Escape
• Standards CE EN 341 cl A

IMPORTANT NOTICE: that controlled rate descender (CRD) rescue devices are made to order and thus classified special order, non-returnable except for manufactung fault.



Take a look at our blog for more information on the Rollgliss R550





Manufacturer's Downloads

Declaration Of Conformity for the 3M™ DBI-SALA® Rollgliss R550 in different lengths are available on request
