CT Climbing Technology Orbiter L Triple Pulley
CT Climbing Technology Orbiter L Triple Pulley
The Orbiter L Tripe Pulley from Climbing Technology has mobile side plates which are very versatile, robust and has the provision for two connectors through the upper eyelet.
Fast Delivery
Deliveries
Coronavirus latest: We are still open for business! Please click here for our full statement on our operations.
We pride ourselves on our excellent service and aim to despatch all orders promptly. If you order before 3pm Monday to Friday we will try to send it out that day, for next working day delivery. Orders:
- placed after 3pm Monday to Thursday will be processed the next day
- placed after 3pm on a Friday or at a weekend or on a Bank Holiday will be processed on the next working day
- Orders to the Highlands, Islands and Out of Area may be a two-day delivery and overseas will be longer
Please call us for time-critical orders, so we can process the order as a matter of urgency and confirm the delivery schedule.
All goods are subject to availability. If we can't supply your goods within 30 days from the date of order, we will inform you immediately and let you know the expected delivery date.
Courier service
If you opt for a courier delivery, you will receive an email or text on the day we despatch your order, informing you that it is enroute. On the morning of delivery, at around 07:30, you will receive a further email or text giving you a 1-hour delivery time slot. Please therefore ensure that you have given us the correct mobile number and email address.
Couriers are extremely busy during Christmas and the sales, so please allow extra time.
We will not be held liable for any consequential loss caused by late or failed deliveries.
Timed deliveries / Saturday & Sunday deliveries
We can arrange timed deliveries for:
Weekdays:
- pre-10:30am
- pre-12 (midday)
Weekends:
- Saturday pre-10:30am
- Saturday pre-12 (midday)
- Sunday (anytime)
Some of the timed delivery options are available via the website, for others including a Sunday delivery, please call the office for a confirmed price and to arrange the alternate delivery.
Important Note:
Timed deliveries are subject to stock availability (we will contact you if any of your order is not in stock, so you can confirm if you would like us to split the delivery) and must be placed by 3pm Monday to Friday. Please call us if it's after 3pm as we may still be able to catch our couriers.
Description

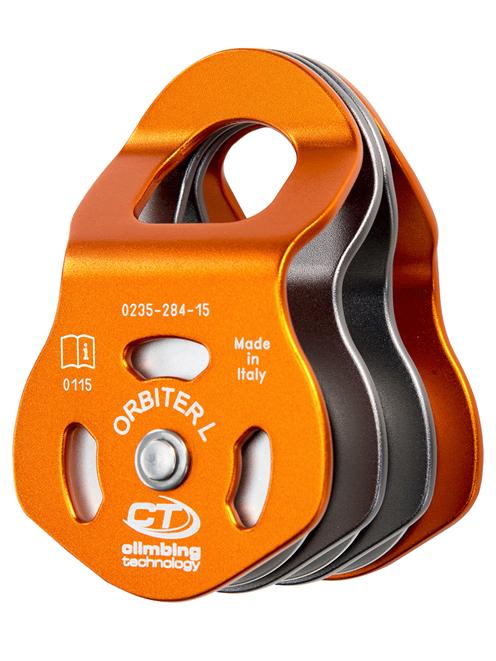

CT Climbing Technology Orbiter L Triple Pulley
The Orbiter L Tripe Pulley from Climbing Technology has mobile side plates which are very versatile, robust and has the provision for two connectors through the upper eyelet.
It's triple sheaves are mounted on heavy duty ball bearings and the light alloy side plates extend beyond the pulley wheels to minimise rope wear. The Orbiter L is ideal for constructing 6:1 mechanical rescue systems where a lighter lifting force is required. The Orbiter pulleys are very high quality and are Italian Made.
Key Features
- It allow the insertion of two connectors in the upper eyelet and it is mounted on ball bearings
- The light-alloy flanges extend beyond the pulley wheels to minimise rope wear
- Ideal for constructing rescue winches with 6x reduction factor or in multiple pulley systems where a larger lifting force is required
Specifications
- Size: 70 x 108 x 78 cm
- Strength: 45 kN
- Weight: 445 g
- For use with rope: 1 - 13mm diameter
- Efficiency (%): 96
- Conformity: EN 12278:2007
Manufacturer's Downloads
Specification
Pulley
|
Pulley Type
|
Triple
|
|---|---|
|
Pulleys Cheek
|
Swing Cheek
|
|
Pulley Wheel Material
|
Aluminium
|
|
Pulley Efficiency
|
Bearing / High Efficiency
|
|
Pulley Efficiency
|
96%
|
|
Minimum Rope Diameter (mm)
|
1mm
|
|
Maximum Rope Diameter (mm)
|
13mm
|
General
|
Industrial or Sport Use
|
Industrial
|
|---|---|
|
Colour
|
Orange
|
|
Material
|
Aluminium
|
|
Dimensions
|
70 x 108 x 78 cm
|
|
Conformity
|
CE EN12278
|
|
Weight (g)
|
445g
|
